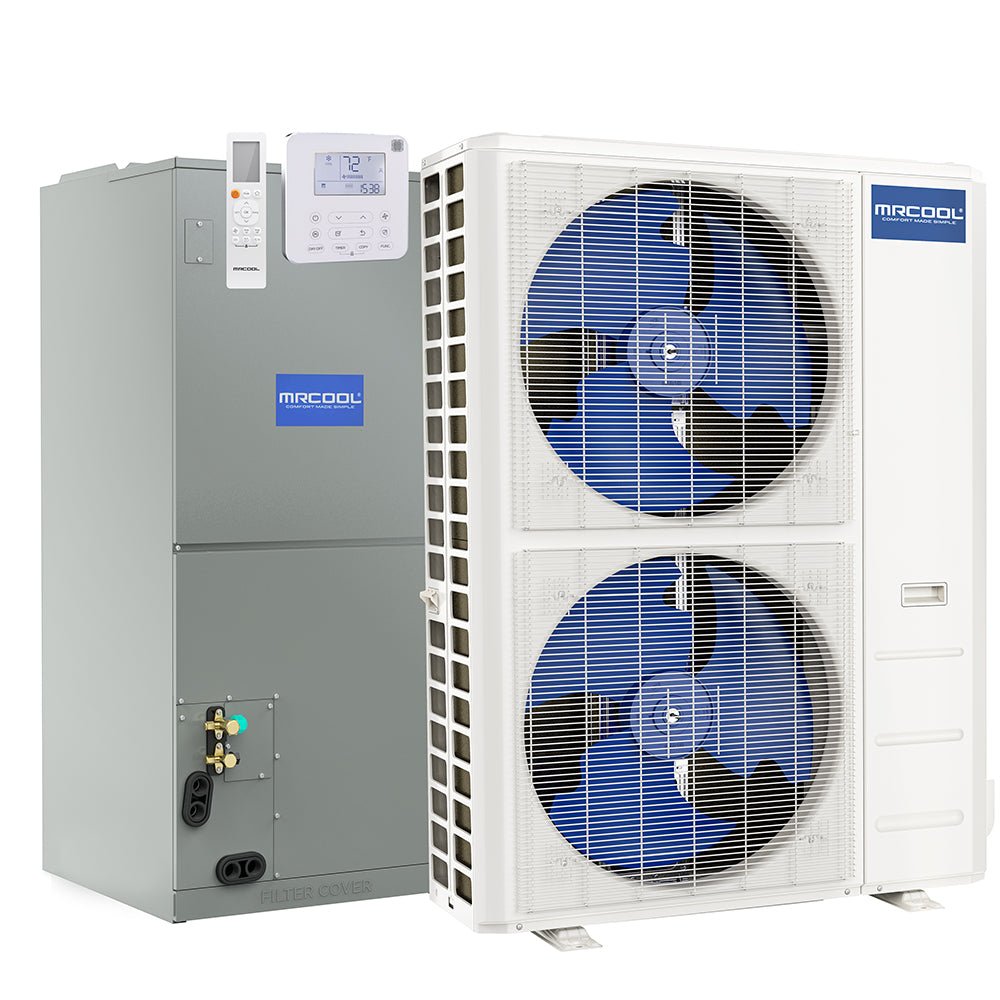

MRCOOL 4 Ton 48,000 BTU 15.6 SEER2 Hyper Heat Central Ducted Heat Pump Split System - Multiposition
MRCOOL 4 Ton 48,000 BTU 15.6 SEER2 Hyper Heat Central Ducted Heat Pump Split System - Multiposition
The MRCOOL 48K BTU (4 Ton) 15.6 SEER2 Central Ducted DC Inverter Heat Pump System will immediately improve the way you enjoy your time at home by making it the exact temperature you want. This affordable system heats or cools around 2,000 square feet, making it a perfect choice for providing efficient and effective comfort.Installation is essentially as easy as as plugging the lineset into the air handler and condenser. This cuts your HVAC technician’s installation time significantly, so you’re saving both time and money! The multi-position air handler, which can accommodate upflow, downflow, horizontal left and horizontal right ductwork needs, combined with the highly efficient condenser is a pairing that will ensure ultimate comfort and reduce your bills as soon as it’s installed.
The self-diagnostics of this system will allow you to identify error codes on the air handler or the thermostat. This variable speed unit will keep your bills low and your home’s air clean with filters. You’ll be covered in the unlikely event that something goes wrong if you register your system for the 10 year parts and service warranty. Choose this MRCOOL 48,000 BTU 15.6 SEER2 Central Ducted DC Inverter Heat Pump System for comfort exactly how you deserve it.
This system does not include the lineset which needs to be purchased separately.

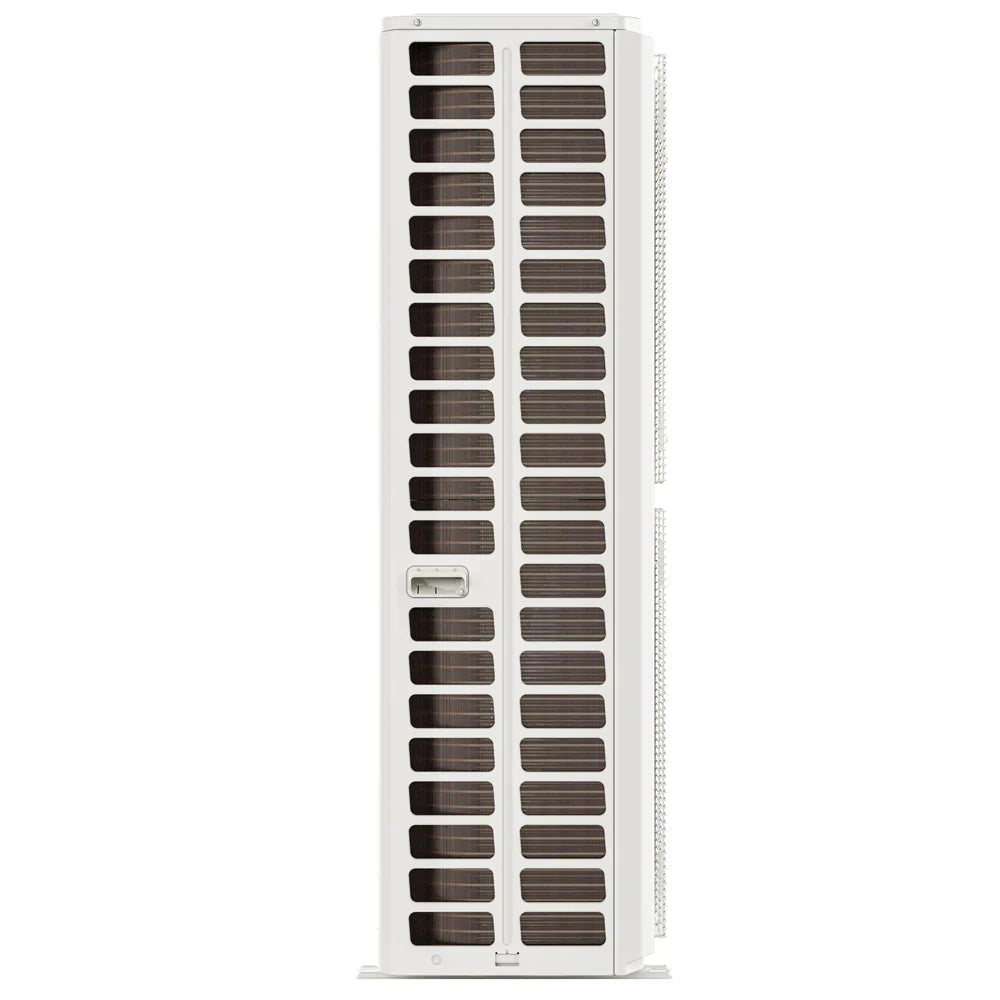

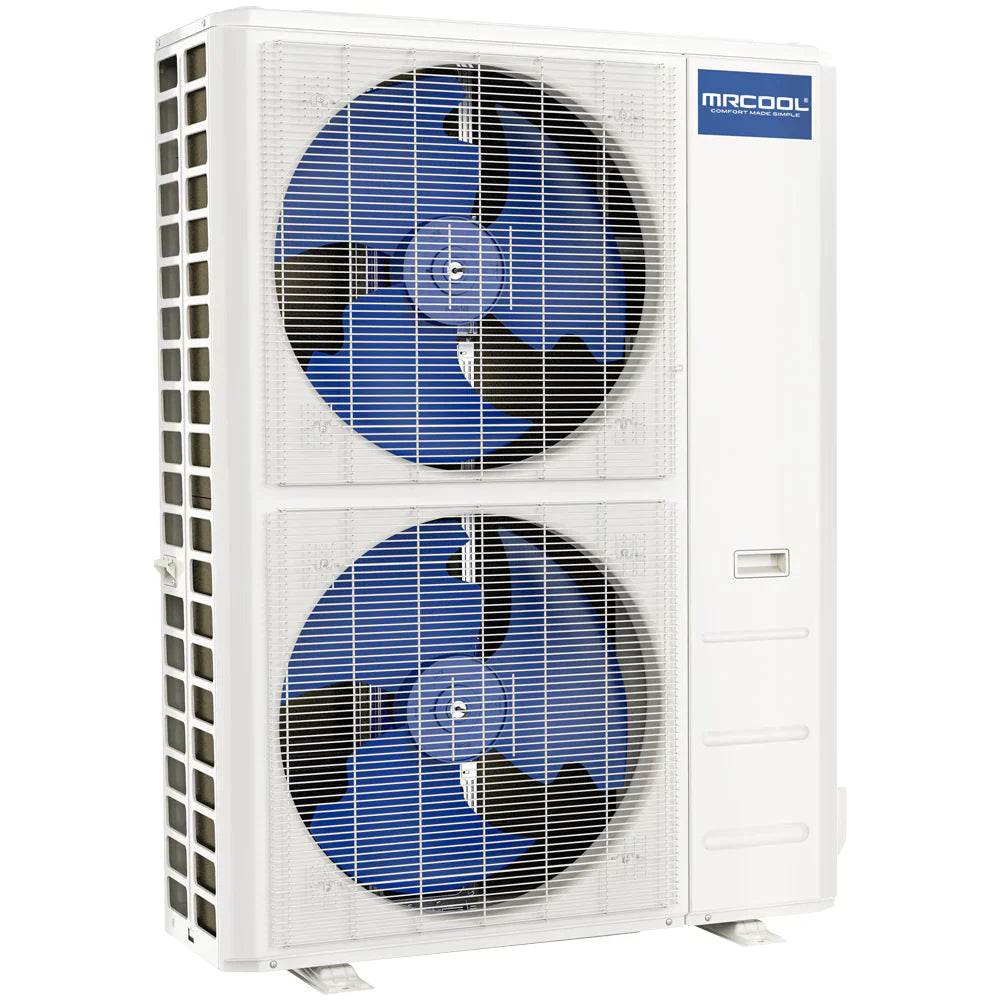

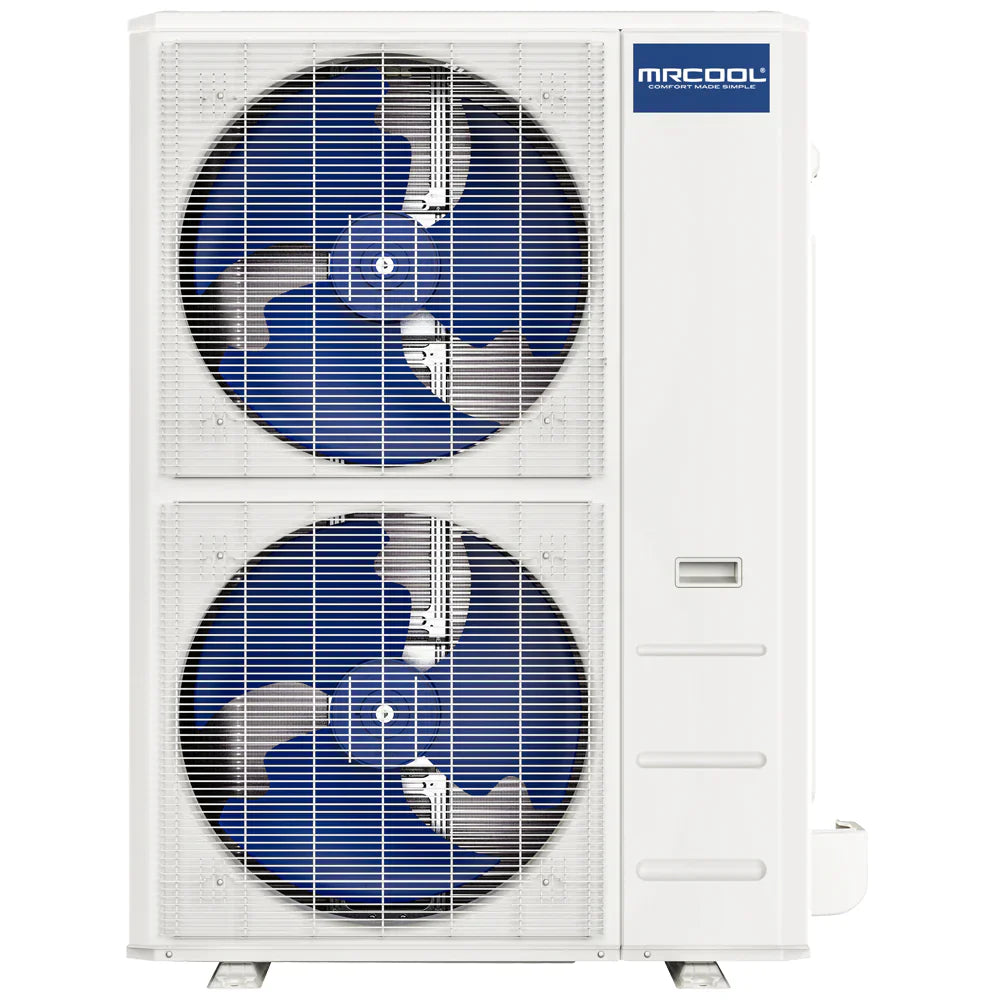

Condenser Specifications:
BRAND NAME | MRCOOL |
SERIES | Central Ducted Hyper Heat |
MODEL | CENTRAL-48-HP-C-230A00 |
GTIN | 840255553070 |
UPC | 840255553070 |
SHORT DESCRIPTION | 48K BTU Hyper Heat Central Ducted Heat Pump Condenser |
LONG DESCRIPTION | A superb option to replace your outdated, cumbersome heating and cooling system, the 48K BTU MRCOOL® Hyper Heat Central Ducted Heat Pump Condenser delivers reliable climate control without straining your budget. Equipped with a DC Inverter and advanced variable speed technology, this unit boasts exceptional efficiency, leading to significant utility cost reductions without compromising performance. It features an impressive SEER2 rating of up to 15.6 and an HSPF2-4 rating of up to 9.4, thanks to its superior heating capacity. It ensures indoor comfort even when outdoor temperatures plunge to -22°F or climb to 122°F. Installation is a cinch for professional HVAC technicians using the compatible MRCOOL® No-Vac® Quick Connect® Line Set. This distinctive line set eliminates the need for vacuuming or flare welding and is kink-resistant, streamlining the connection process and lowering installation expenses. In addition, the unit utilizes the eco-friendly R-410A refrigerant, causing no harm to the environment. Constructed with premium materials like painted galvanized steel, this durable unit resists damage from severe weather, animals, or yard equipment, ensuring reliable performance for years to come. In the rare event of any issues, a 10-year warranty covering the compressor, parts, and labor backs the unit. What's more, the labor warranty is automatically activated upon installation, removing the need for a lengthy registration process. |
BULLET 1 | Up to 15.6 SEER2 |
BULLET 2 | 10-year Warranty on Parts, Labor, and Compressor |
BULLET 3 | Optional Heating Kit - More Options to Stay Warm. |
SEER2 | 15.6 |
EER2 | 8.2 |
HSPF2 | hspf2-4/2-5: 9.4/7.7 |
CFM | 4411.76 |
COOLING CAPACITY | 47000 |
HEATING CAPACITY | 50000 |
VOLTAGE | 208/230 |
PHASE | 1 |
CYCLE | 60 |
MAX FUSE BREAKER | 50 |
MIN CIRCUIT AMPACITY | 42 |
REFRIGERANT TYPE | R410A |
REFRIGERANT VOLUME | 169.32oz |
DECIBEL RATING | 64 |
INVERTER | DC |
MAX LINESET LENGTH | 213.25 ft |
LIQUID LINE SIZE | 3/8in |
SUCTION LINE SIZE | 3/4in |
AUXILIARY HEATER INCLUDED | No |
AUXILIARY HEATER AVAILABLE | Yes |
AHRI CERTIFIED | Yes |
BASE WARRANTY | 10yrs Parts and Labor |
PROPOSITION 65 WARNING | Yes |
NET DEPTH | 16.34in |
NET HEIGHT | 52.48in |
NET WIDTH | 37.48in |
NET WEIGHT | 220.24lbs |
GROSS DEPTH | 19.49in |
GROSS HEIGHT | 57.48in |
GROSS WIDTH | 43.11in |
GROSS WEIGHT | 248.90lbs |
GROSS WIDTH | 26.57in |
GROSS WEIGHT | 156.75lbs |

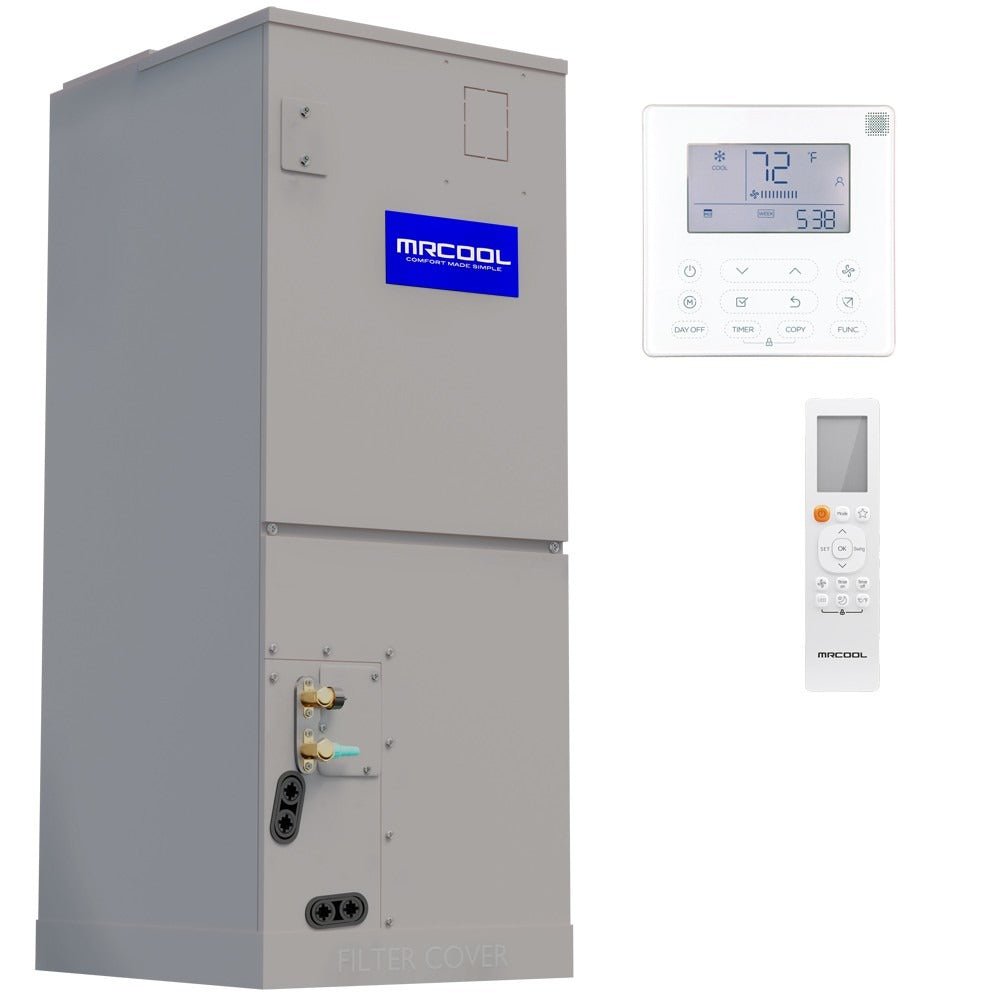

Air Handler Specifications:
BRAND NAME | MRCOOL |
SERIES | Central Ducted Hyper Heat |
MODEL | CENTRAL-48-HP-MUAH230A00 |
GTIN | 840255553131 |
UPC | 840255553131 |
SHORT DESCRIPTION | 48K MRCOOL® Hyper Heat Central Ducted Air Handler |
LONG DESCRIPTION | Regardless of external weather conditions, the 48K MRCOOL® Hyper Heat Central Ducted Air Handler is an exceptional choice for your home's heating and cooling needs. Its efficiency results in utility expense savings, and it boasts an impressive SEER2 rating of up to 15.6 and an HSPF2-4 rating of up to 9.4 due to its superior heating capacity. Constructed with painted galvanized steel, the high quality unit features a side-discharge design, slide-out blower, self-diagnostics panel, and removable filters for easy maintenance. An HVAC technician can effortlessly install the unit, which is designed to work with the optional MRCOOL® No-Vac® Quick Connect® Line Set. This line set comes pre-charged with eco-friendly R410-A refrigerant, eliminating the need for vacuuming or flare welding and providing kink resistance. It allows for flexible installation options as it can be configured in various ways. Additionally, a wired thermostat, wireless remote, and an optional heat kit are available if needed. Should any operational concerns arise, the air handler is backed by a reassuring 10-year warranty for parts and labor, giving you peace of mind. Moreover, there's no need to register for the included labor warranty. |
BULLET 1 | Up to 15.6 SEER2 |
BULLET 2 | High Static - Mobile Home Compatible - The Central Ducted Air Handler is made to accommodate the high static requirements for manufactured and modular homes. |
BULLET 3 | Multi-Positional - Any Way You Want It. This unit is compatible with Upflow, downflow and horizontal configurations. |
BULLET 4 | Thermostat Included - Just A Touch Away. The included wired thermostat has a variety of options to keep your home the temperature you want it to be. |
BULLET 5 | 10-year Warranty on Parts, Labor, and Compressor |
CFM | 1470.59/1282.35/1094.12/905.88 |
COOLING CAPACITY | 47000 |
HEATING CAPACITY | 50000 |
VOLTAGE | 208/230 |
PHASE | 1 |
CYCLE | 60 |
MAX FUSE BREAKER | 15 |
MIN CIRCUIT AMPACITY | 7.5 |
REFRIGERANT TYPE | R410A |
DECIBEL RATING | 47 |
DECIBEL RATING LOW | 43.5 |
DECIBEL RATING HIGH | 50 |
NUMBER OF SPEEDS | 4 |
INVERTER | DC |
MAX LINESET LENGTH | 213.25 ft |
LIQUID LINE SIZE | 3/8in |
SUCTION LINE SIZE | 3/4in |
AUXILIARY HEATER INCLUDED | No |
AUXILIARY HEATER AVAILABLE | Yes |
AUXILIARY HEATER SIZES | 8kW, 10kW, 15kW, 20kW |
AHRI CERTIFIED | Yes |
BASE WARRANTY | 10yrs Parts and Labor |
PROPOSITION 65 WARNING | Yes |
NET DEPTH | 21.02in |
NET HEIGHT | 49.02in |
NET WIDTH | 21.02in |
NET WEIGHT | 132.50lbs |
GROSS DEPTH | 24.41in |
GROSS HEIGHT | 52.56in |
GROSS WIDTH | 26.57in |
GROSS WEIGHT | 156.75lbs |
