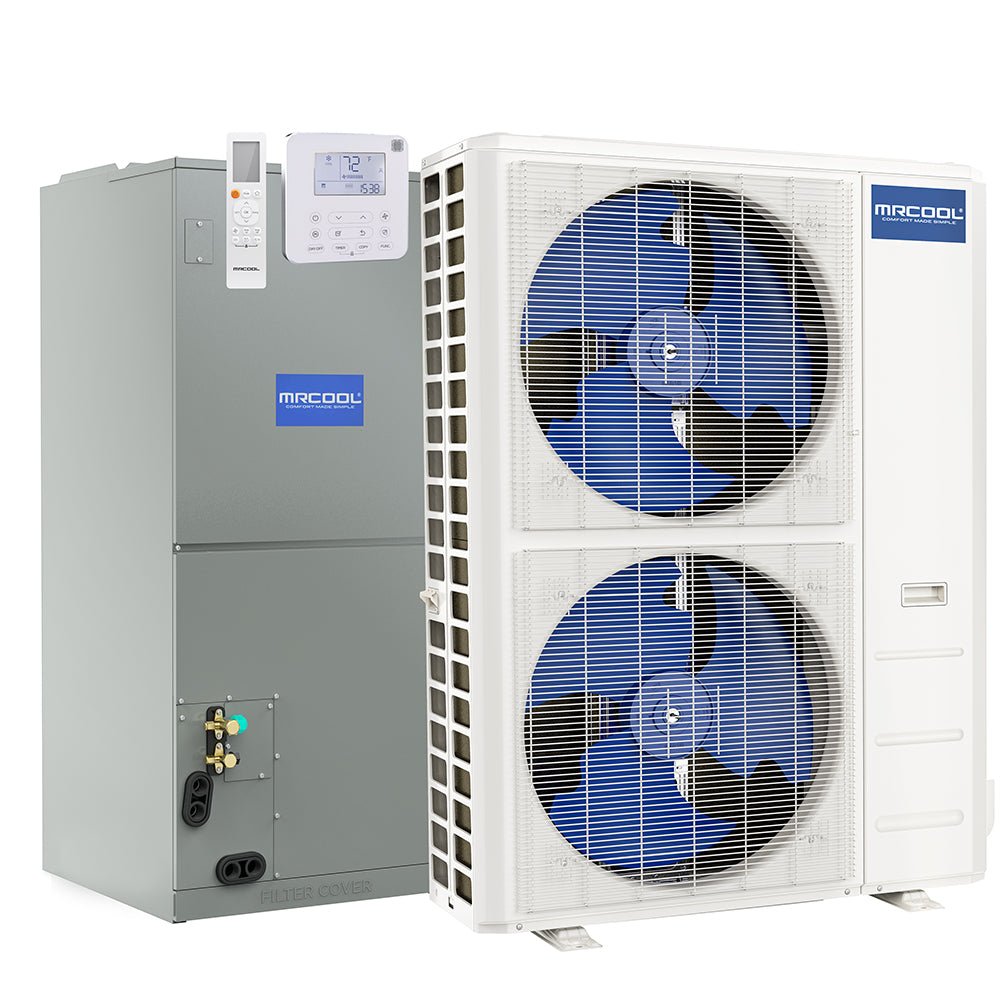

MRCOOL 5 Ton 60,000 BTU 15.3 SEER2 Hyper Heat Central Ducted Heat Pump Split System - Multiposition
MRCOOL 5 Ton 60,000 BTU 15.3 SEER2 Hyper Heat Central Ducted Heat Pump Split System - Multiposition
Couldn't load pickup availability
The MRCOOL 60K BTU (5 Ton) 15.3 SEER2 Central Ducted DC Inverter Heat Pump System will immediately improve the way you enjoy your time at home by making it the exact temperature you want. This affordable system heats or cools around 2,500 square feet, making it a perfect choice for providing efficient and effective comfort.

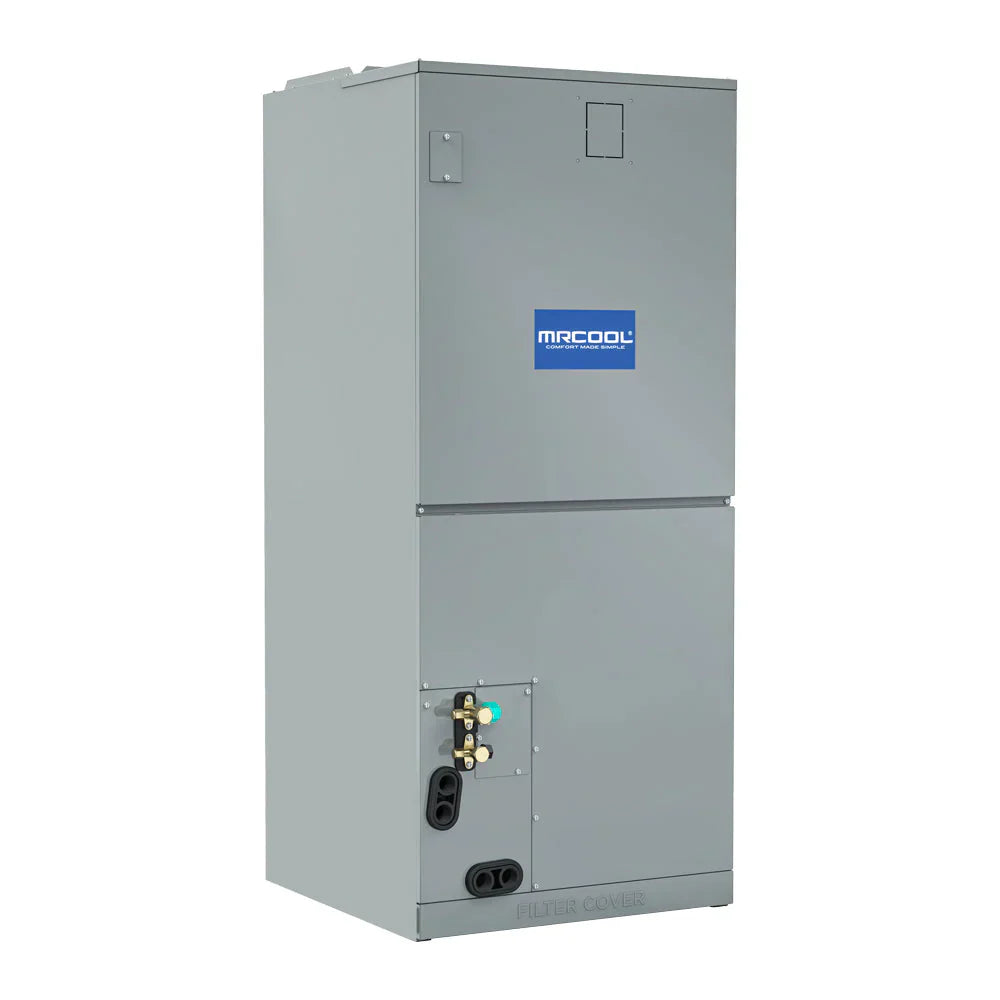

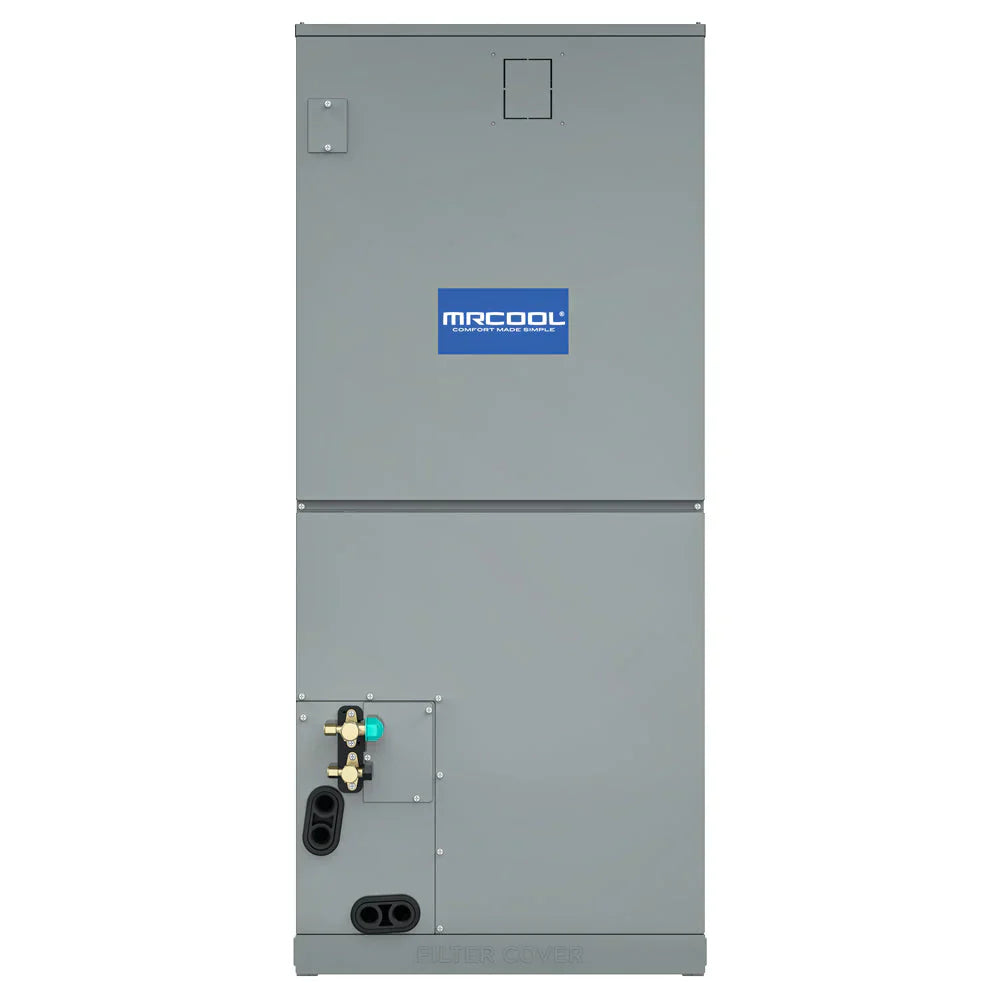

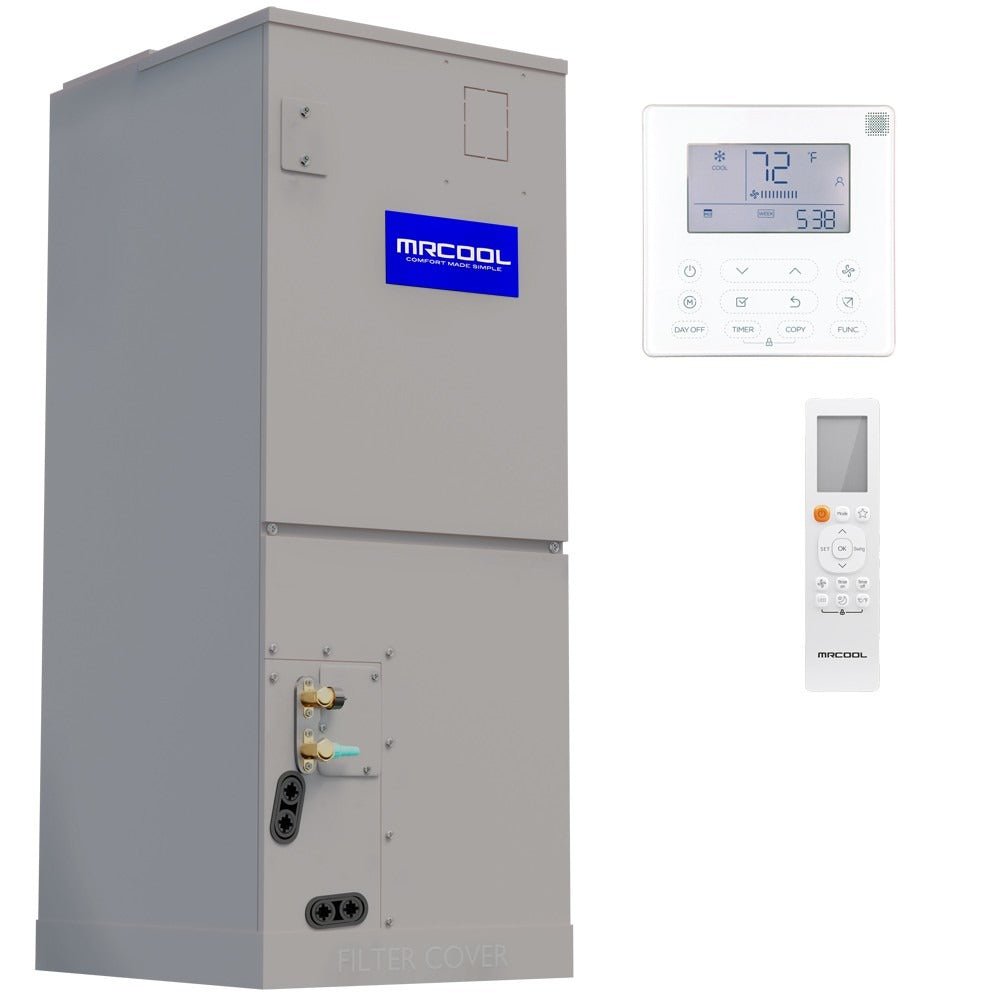

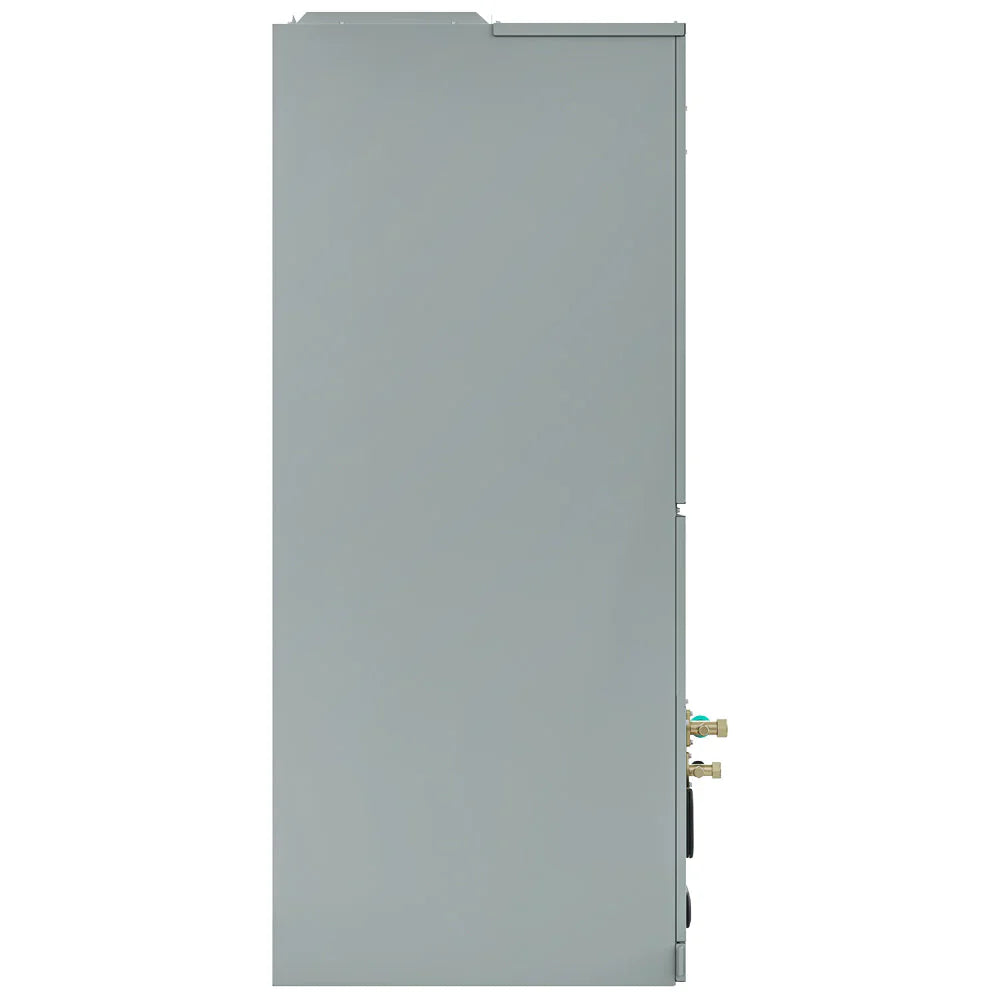

Installation is essentially as easy as as plugging the lineset into the air handler and condenser. This cuts your HVAC technician’s installation time significantly, so you’re saving both time and money! The multi-position air handler, which can accommodate upflow, downflow, horizontal left and horizontal right ductwork needs, combined with the highly efficient condenser is a pairing that will ensure ultimate comfort and reduce your bills as soon as it’s installed.
The self-diagnostics of this system will allow you to identify error codes on the air handler or the thermostat. This variable speed unit will keep your bills low and your home’s air clean with filters. You’ll be covered in the unlikely event that something goes wrong if you register your system for the 10 year parts and service warranty. Choose this MRCOOL 60,000 BTU 15.3 SEER2 Central Ducted DC Inverter Heat Pump System for comfort exactly how you deserve it.
| BRAND NAME | MRCOOL |
| SERIES |
Central Ducted System
|
| MODEL |
CENTRAL-60-HP-230-00
|
| GTIN | 840255522120 |
| UPC | 840255522120 |
| SHORT DESCRIPTION |
MRCOOL 60k BTU 15.3 SEER2 Ducted Air Handler and Condenser
|
| LONG DESCRIPTION |
Choose the affordable MRCOOL 60k BTU up to 15.3 SEER2 Central Ducted DC Inverter Heat Pump System for the most efficient, consistent, and complete comfort you could experience. This system can heat and cool up to 2500 square feet, so your entire home can be covered in the precise temperature that you deserve. This system is able to accommodate any installation requirements you might have, because it is a multi-position unit that can operate in an upflow, downflow, horizontal left or right configuration. You’ll save money as this system provides you comfort, because the variable speed condenser works hard to provide the temperature you want and save energy. This system is compatible with the MrCool® No-Vac® Quick Connect® line set. The panel on the handler as well as the thermostat allow you to identify any error codes. You won’t have to worry if something goes wrong, because this system is covered by a 10 year parts warranty and a 10 year service warranty. If you want to feel true comfort without sacrificing your savings, get the MRCOOL 60k BTU 15.3 SEER2 Central Ducted DC Inverter Heat Pump System.
|
| BULLET 1 |
Includes features such as timer mode, auto cool mode, fan only mode, and more
|
| BULLET 2 |

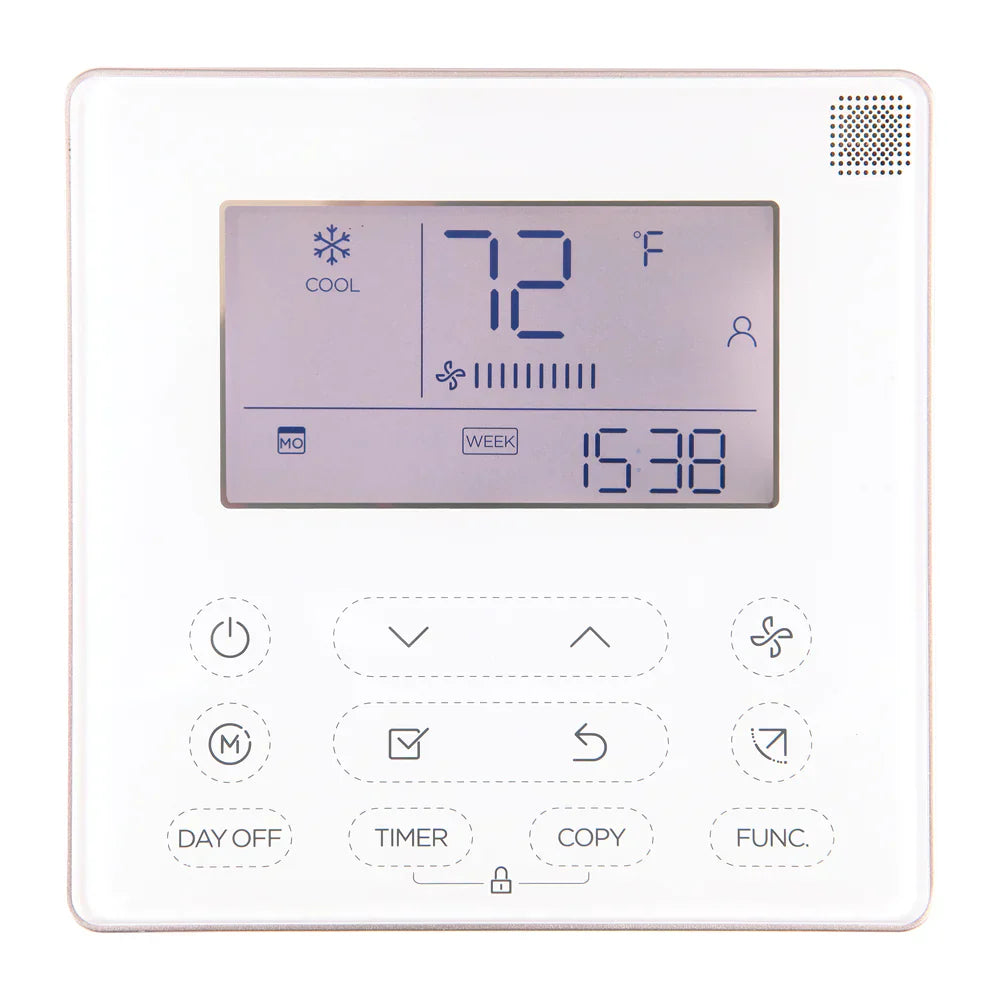

Wired thermostat included (.78 in x 4.72 in x 4.72in)
|
| BULLET 3 |
Multi position installation
|
| BULLET 4 |
Optional heating kit available
|
| BULLET 5 |
R-410A environmentally friendly refrigerant
|
| BULLET 6 |
10 year parts and labor warranty*
|
| SEER2 | 15.3 |
| EER | 8.8 |
| HSPF |
hspf4/hspf5: 9.2/7.6
|
| CFM |
1582.35/1358.82/1135.29
|
| COOLING CAPACITY | 57000 |
| HEATING CAPACITY | 60000 |
| VOLTAGE | 208/230 V |
| PHASE | 1 |
| CYCLE | 60 Hz |
| MAX FUSE BREAKER | 60 |
| MIN CIRCUIT AMPACITY | 44 |
| COLOR | Gray |
| RATED LOAD | 2.4 |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R410A |
| REFRIGERANT VOLUME | 172.84 oz |
| DECIBEL RATING | 52.5/49/44 |
| DECIBEL RATING LOW | 44 |
| DECIBEL RATING HIGH | 52.5 |
| AIR FLOW DIRECTION | Multi-position |
| MIN AMBIENT COOL | 5~122F |
| MIN AMBIENT HEAT | 5~75.2F |
| LINESET INCLUDED | no |
| LIQUID LINE SIZE | 3/8in |
| SUCTION LINE SIZE | 7/8 in |
| COMPRESSOR MOTOR TYPE | Rotary |
| CONDENSER FAN MOTOR RPM | 900/850/650 |
| FILTER TYPE | Replaceable |
| AUXILIARY HEATER INCLUDED | no |
| AUXILIARY HEATER AVAILABLE | yes |
| AUXILIARY HEATER SIZES |
10kw,15kw, 20kw
|
| ADJUSTABLE THERMOSTAT | yes |
| FAN ONLY OPTION | yes |
| SLEEP MODE | yes |
| AUTO COOL | yes |
| APP COMPATIBILITY | no |

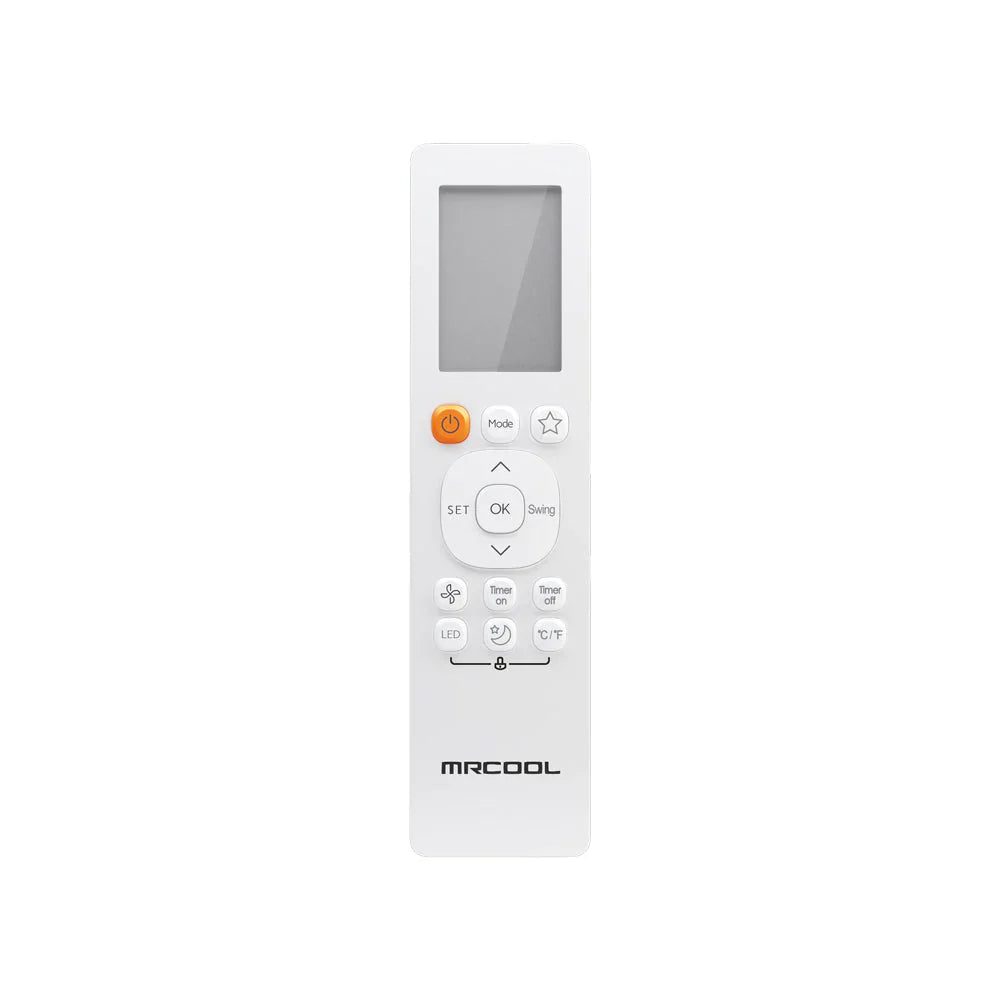

| REMOTE CONTROL INCLUDED | yes |
| AHRI CERTIFIED | yes |
| BASE WARRANTY |
10 years parts and labor
|

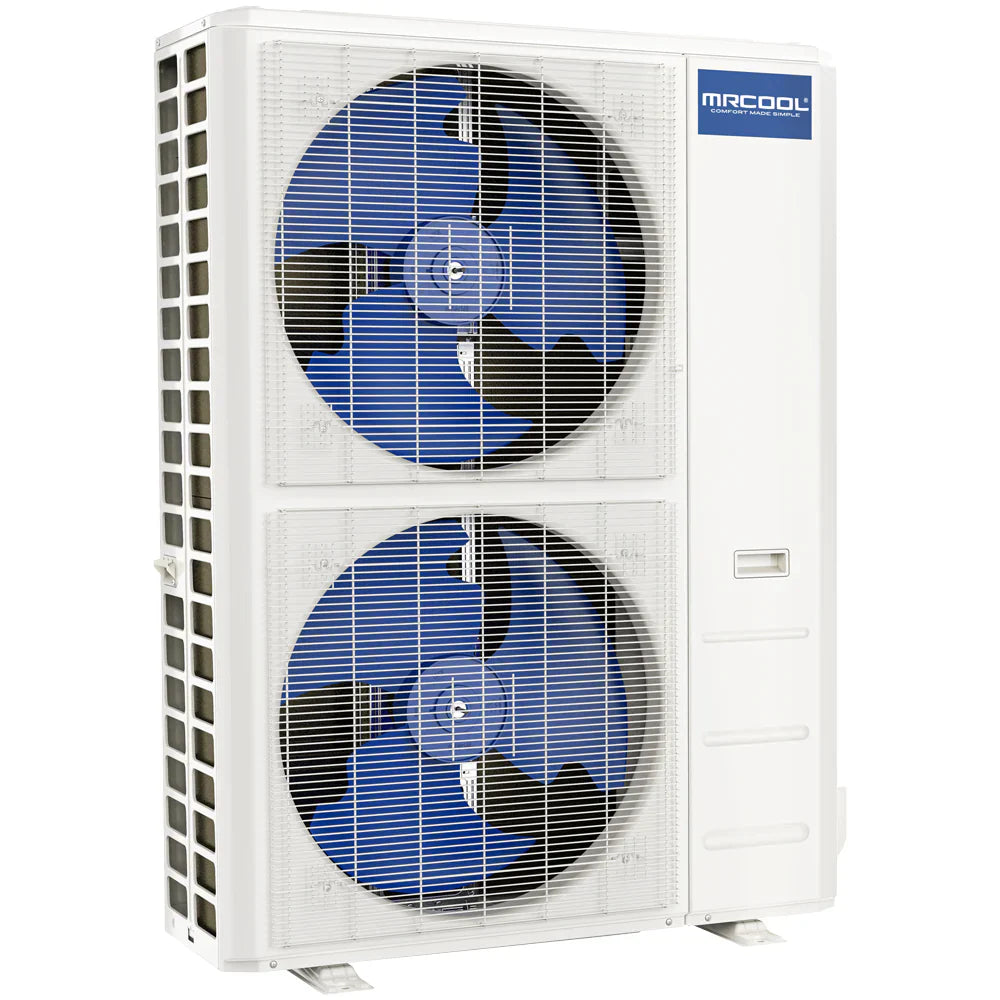

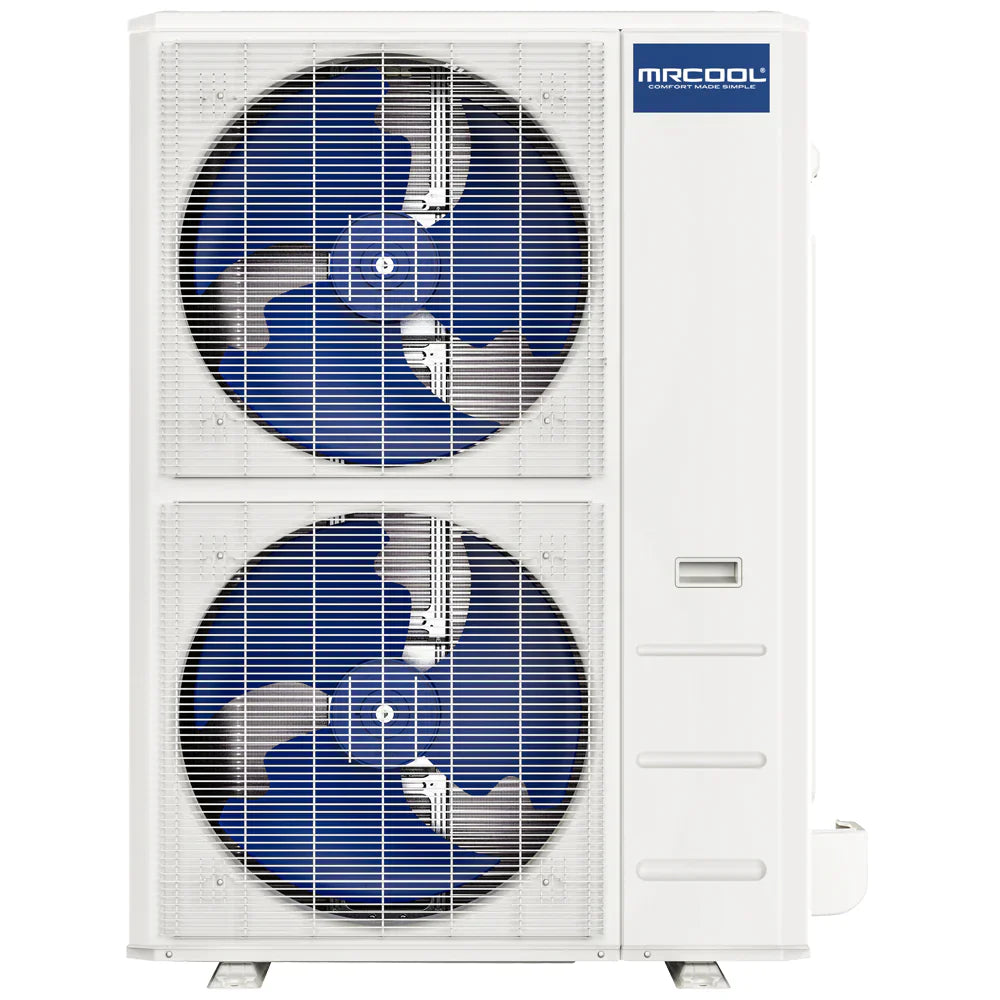

| CONDENSER DEPTH | 16.34 in |
| CONDENSER HEIGHT | 52.48 in |
| CONDENSER WIDTH | 37.48 in |
| CONDENSER WEIGHT | 217.15 lbs |
| AIR HANDLER DEPTH | 24.49 in |
| AIR HANDLER HEIGHT | 52.99 in |
| AIR HANDLER WIDTH | 21.02 in |
| AIR HANDLER WEIGHT | 164.02 lbs |
