MRCOOL Advantage 4G 36,000 BTU 17.5 SEER Ductless Mini Split Air Conditioner and Heat Pump - 230V/60Hz
MRCOOL Advantage 4G 36,000 BTU 17.5 SEER Ductless Mini Split Air Conditioner and Heat Pump - 230V/60Hz
This system is meant to be installed by an HVAC technician. The newly designed 4th generation Advantage Series, with improved efficiency ratings up to 17.5 SEER, delivers high-performance comfort from the moment it's activated. And its competitive price makes it a consumer favorite that's tough to beat. The MRCOOL Advantage condenser and wall mounted air handler is an ideal combination of superior product quality, energy efficiency, quiet operation, and financial value. The condenser incorporates a high-performance compressor with eco-friendly, chlorine-free R-410A refrigerant. The MRCOOL Advantage is the clear choice for consumers who want to combine superior interior comfort with environmentally friendly technology. The MRCOOL Advantage now includes the new SmartHVAC WiFi control module that features an easier setup process, improved functionality, and works with Amazon Alexa and Google Assistant.
Features:
- Simple to Use
- Multi-room Comfort
- Energy Efficient DC Inverter
- 100% Sealed System
- Gold Fin® Condenser
- Eco-Safe R-410A Refrigerant
- Smartphone App Controls
- Lifetime Technical Support
- Follow Me® Feature
- Low Ambient Cooling
Looking for a Do-It-Yourself unit? DIY 36,000 BTU Mini Splits
BRAND NAME | MRCOOL |
SERIES | Advantage Series 4th Gen |
MODEL | A-36-HP-230C |
GTIN | 840255521802 |
UPC | 840255521802 |
UNIT TYPE | Mini-Split |
SHORT DESCRIPTION | Designed to be installed by an HVAC technician, this 4th generation MRCOOL Advantage Series is now efficiently rated at 17.5 SEER. |
LONG DESCRIPTION | Designed to be installed by an HVAC technician, this 4th generation MRCOOL Advantage Series is now efficiently rated at 17.5 SEER. Immediately upon installation, this quality mini-split system provides high quality comfort with a price point that’s hard to beat. This combination air handler and condenser is great for those looking for quality, efficiency, quiet operation, and affordability. The high performance compressor features the eco-friendly refrigerant R-410A that is chlorine-free. This MRCOOL Advantage system incorporates both quality and superior technological control with its WiFi control module. It aids in easier setup and you’re able to control it with the SmartHVAC app, or your Amazon Alexa or Google Assistant. |

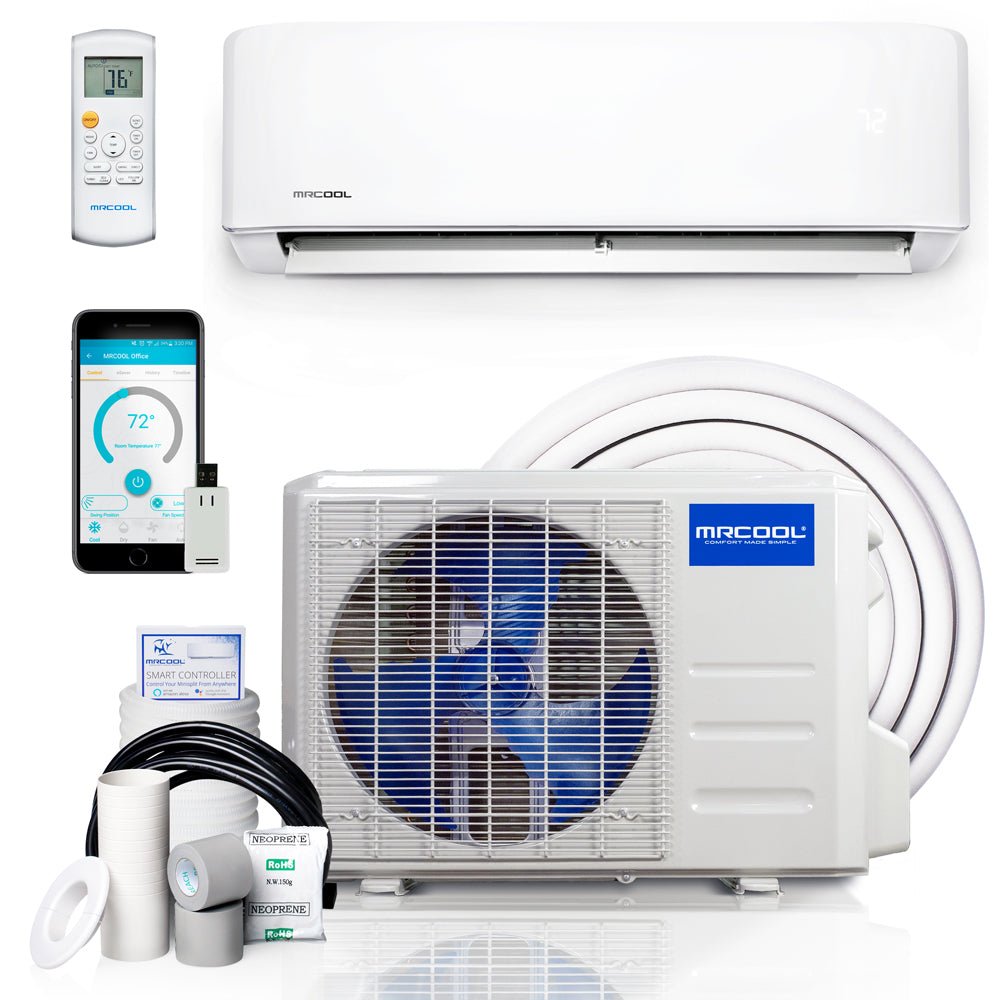

BULLET 1 | Installation kit included |
BULLET 2 | Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion |
BULLET 3 | The new 4th generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant. |
BULLET 4 | Installation by a licensed professional required where applicable |
BULLET 5 | 1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional |
BULLET 6 | R-410A environmentally friendly refrigerant |
BULLET 7 | Sleep mode, louver position memory, and auto restart functions |
BULLET 8 | Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor |
SEER | 17.5 |
SEER2 | 17.5 |
EER | 8.5 |
EER2 | 8.5 |
HSPF | hspf4/hspf5: 12/8 |
HSPF2 | hspf2-4/hspf2-5: 8.7/6.8 |
COOLING CAPACITY | 36000 |
HEATING CAPACITY | 36000 |
VOLTAGE | 208/230V |
PHASE | 1 |
CYCLE | 60Hz |
MAX FUSE BREAKER | 35 A |
MIN CIRCUIT AMPACITY | 28 A |
COLOR | White |
MAX COVERAGE AREA | 1500 sqft |
ZONE CAPACITY | 1 |
REFRIGERANT TYPE | R-410A |
REFRIGERANT VOLUME | 119.9oz |
DECIBEL RATING | 54.5 dBA |
DECIBEL RATING LOW | 40 dBA |
DECIBEL RATING HIGH | 56.5 dBA |
NUMBER OF SPEEDS | 3 |
MIN AMBIENT HEAT | 5 Degrees F |
LIQUID LINE SIZE | 3/8 in |
SUCTION LINE SIZE | 5/8 in |
FILTER TYPE | Washable |
LOW VOLTAGE COMPENSATION | No |
OVERLOAD PROTECTION | Yes |
ADJUSTABLE THERMOSTAT | Yes |
FAN ONLY OPTION | Yes |
QUIET MODE | Yes |
SLEEP MODE | No |
AUTO COOL | Yes |
WIFI COMPATIBILITY | Yes |
APP COMPATIBILITY | Yes |
WORKS WITH IOS | Yes |
WORKS WITH ANDROID | Yes |
REMOTE CONTROL INCLUDED | Yes |
UL LISTED | Yes |
CSA LISTED | Yes |
ETL LISTED | Yes |
ENERGY STAR COMPLIANT | No |
ENERGY STAR CERTIFIED | No |
AHRI CERTIFIED | Yes |
REGISTERED WARRANTY | 1-Year Compressor, 2-Year Parts and 1-Year Remote |
BASE WARRANTY | None |
REGISTERED PARTS WARRANTY | 2-year |
BASE PARTS WARRANTY | None |
REGISTERED COMPRESSOR WARRANTY | 1-year |
BASE COMPRESSOR WARRANTY | None |
REGISTERED REMOTE WARRANTY | 1-year |
BASE REMOTE WARRANTY | None |
REGISTERED LABOR WARRANTY | None |
BASE LABOR WARRANTY | None |
HAS BATTERIES | Yes |
CONTAINS ELECTRONICS | Yes |
CONTAINS CHEMICALS | Yes |
CONTAINS AEROSOL | Yes |
CONTAINS COMPRESSED GAS | Yes |
PROPOSITION 65 WARNING | Yes |
CONDENSER DEPTH | 16.14 in |
CONDENSER HEIGHT | 31.89 in |
CONDENSER WIDTH | 37.24 in |
CONDENSER WEIGHT | 150.13 lbs |
AIR HANDLER DEPTH | 11.10 in |
AIR HANDLER HEIGHT | 14.25 in |
AIR HANDLER WIDTH | 49.57 in |
AIR HANDLER WEIGHT | 40.34 lbs |
