MRCOOL DIY 24K 24,000 BTU 20 SEER 4th Gen Ductless Mini Split Air Conditioner and Heat Pump - 230V
MRCOOL DIY 24K 24,000 BTU 20 SEER 4th Gen Ductless Mini Split Air Conditioner and Heat Pump - 230V
Couldn't load pickup availability
MRCOOL's 4th generation DIY 24K heat pump mini split air conditioner is the latest and greatest of the only ductless mini-split system on the market purposefully designed for anyone to be able to install. It is perfect for garages, workshops, sunrooms, RV's, trailers, or other spaces, especially if they don't have ductwork.
Sizes of MRCOOL DIY Single Zone Mini Splits:
12,000 BTU - 550 Square Feet
18,000 BTU - 800 Square Feet
24,000 BTU - 1,100 Square Feet
36,000 BTU - 1,500 Square Feet
The fourth generation DIY 24K is now even more efficient, versatile and easy to install so you don't need any special tools or training to install this high efficiency heat pump. It was designed so that anyone can easily install a MRCOOL DIY in only a few short hours without problems. You save money by installing the air conditioner yourself and also on the rebates available for ENERGY STAR models!
The MRCOOL DIY 24,000 mini-split is the most cost efficient air conditioner on the market today. When appropriately sized this system is the ideal DIY solution for a 1,100 square feet area. The MRCOOL DIY includes the new SmartHVAC Wi-Fi module that features a simple setup process, improved functionality and also works with both Amazon Alexa and Google Assistant. If you want great air comfort without paying for installation, you want a MRCOOL DIY Series ductless heat pump!

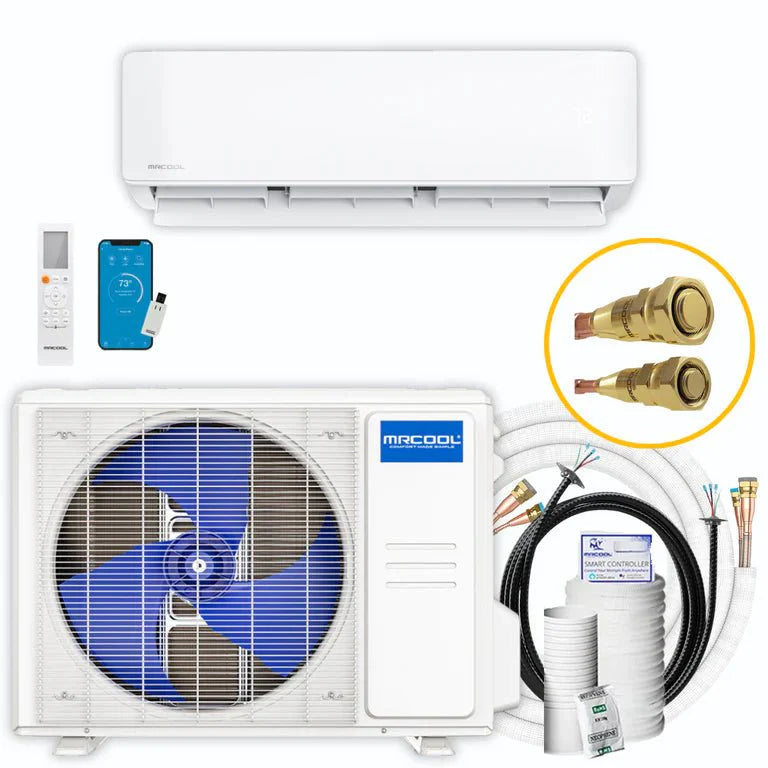

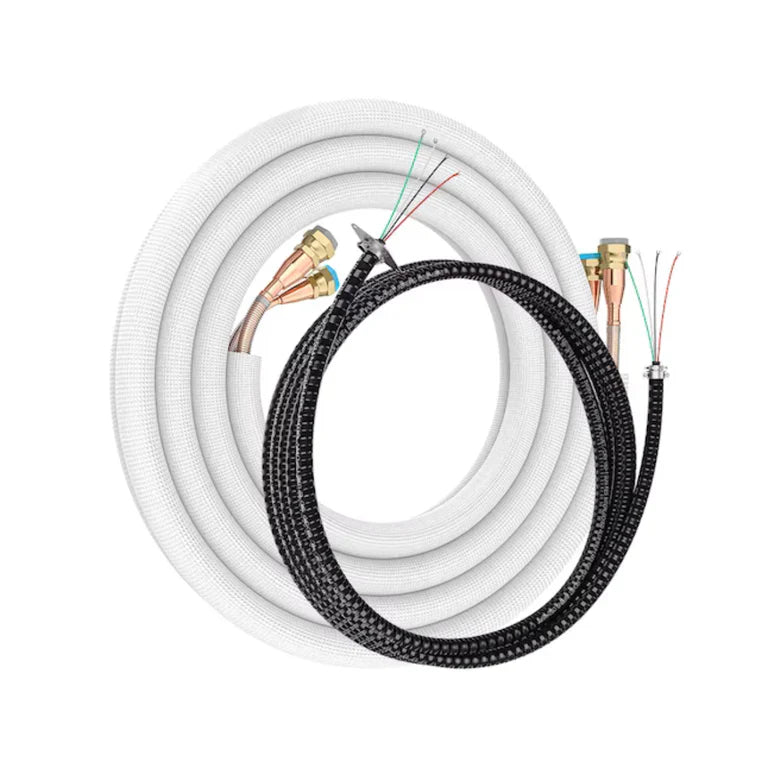

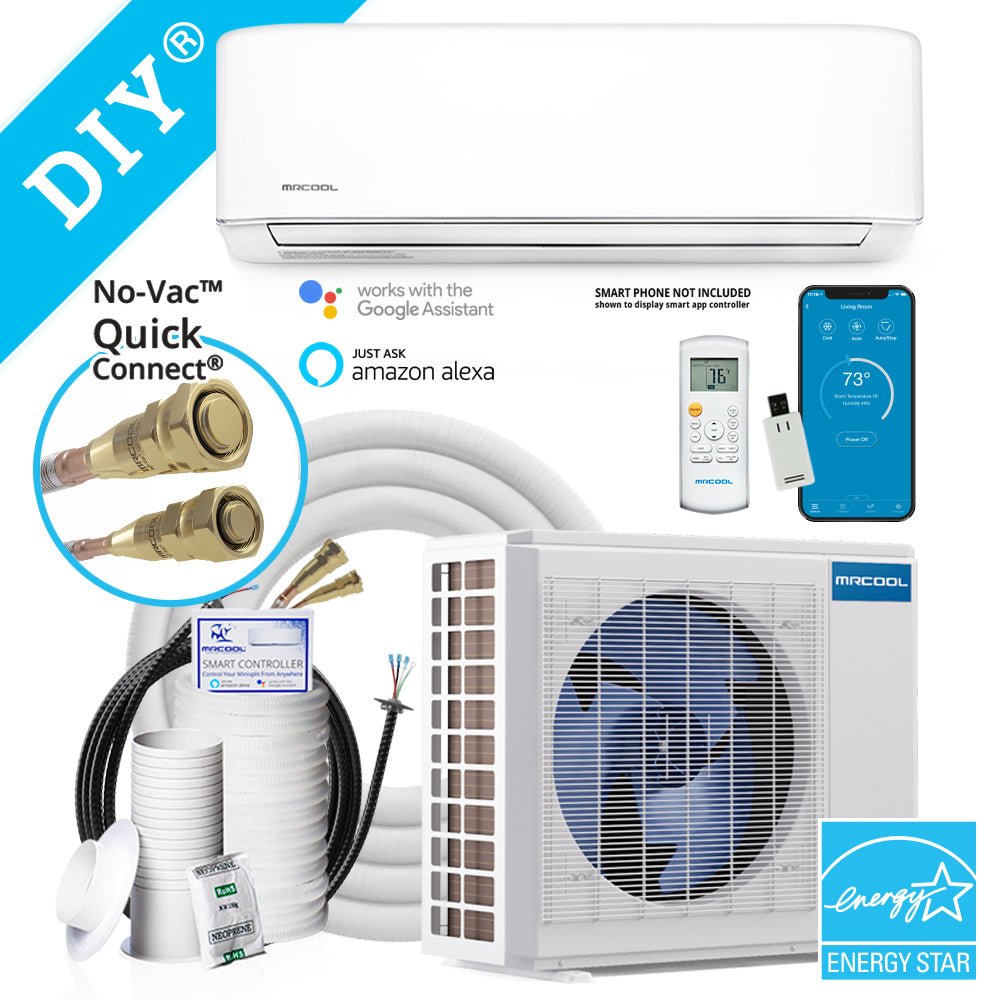

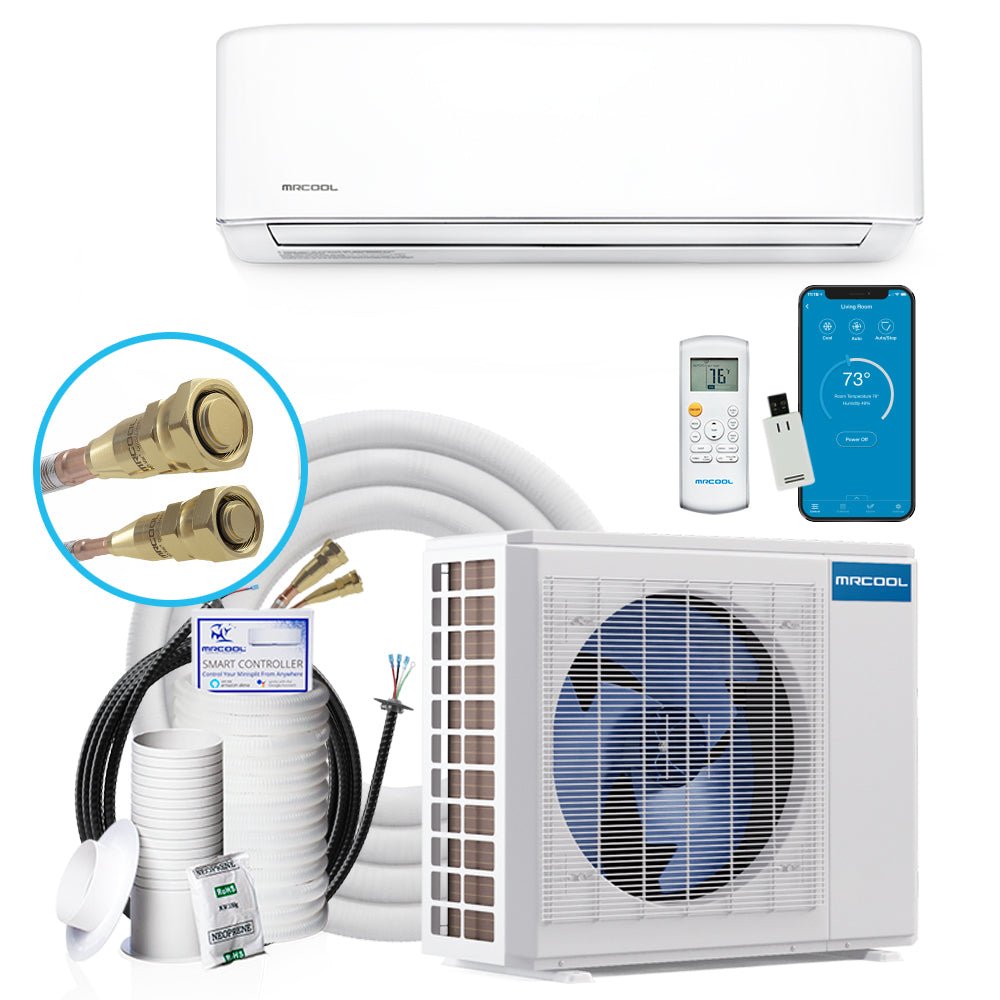

The MRCOOL DIY 24,000 BTU 20 SEER 230V Ductless Mini Split AC and Heat Pump System includes pre-charged 25’ Line Sets with control wire and a Remote Control.
- Designed for easy installation and comes with 25ft. pre-charged line sets
- ENERGY STAR certified
- Includes SmartHVAC Wi-Fi control module that works with Apple and Android smart devices, Amazon Alexa, and Google assistant
- 7-year compressor warranty and 5-year parts warranty
- DC inverter and variable speed compressor technology minimizes operating costs
- Refrigerant leakage detection ensures your system remains operating efficiently

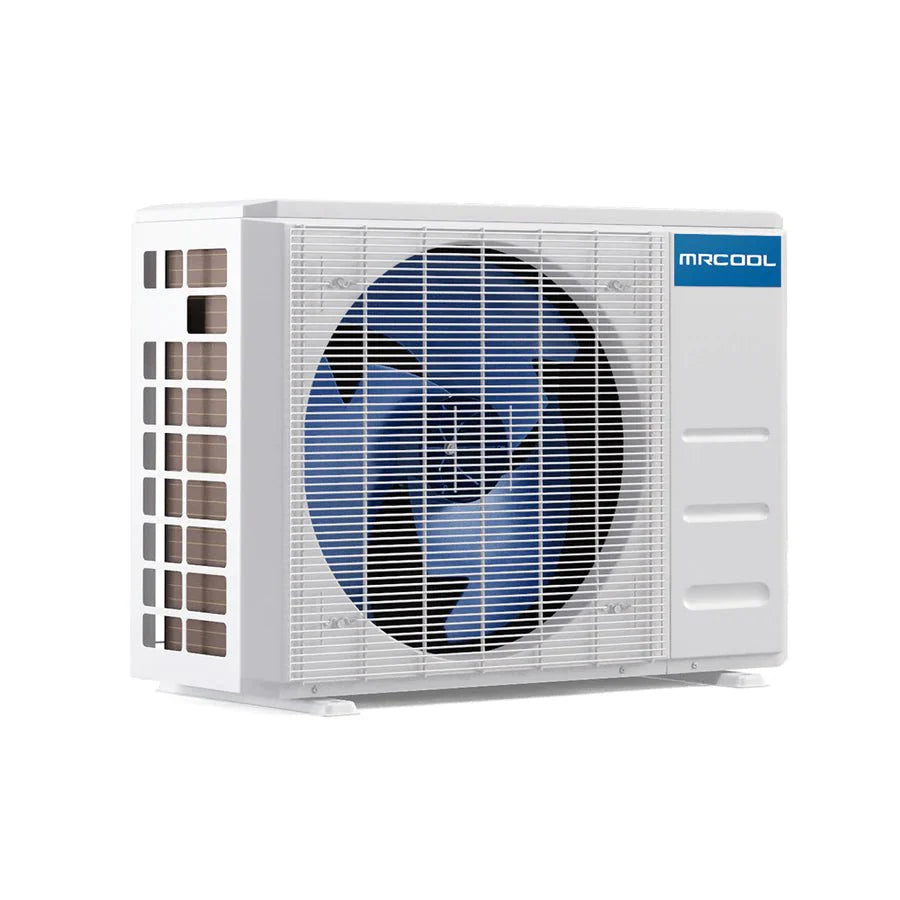

- Gold fin condenser: corrosion resistant, great for coastal areas
| BRAND NAME | MRCOOL |
| SERIES | DIY 4th Gen E STAR |
| MODEL | DIY-24-HP-WM-230C25 |
| GTIN | 00810035935174 |
| UPC | 810035935174 |
| UNIT TYPE | Mini-Split |
| SHORT DESCRIPTION | MrCool E Star DIY 4th Gen 24k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz |

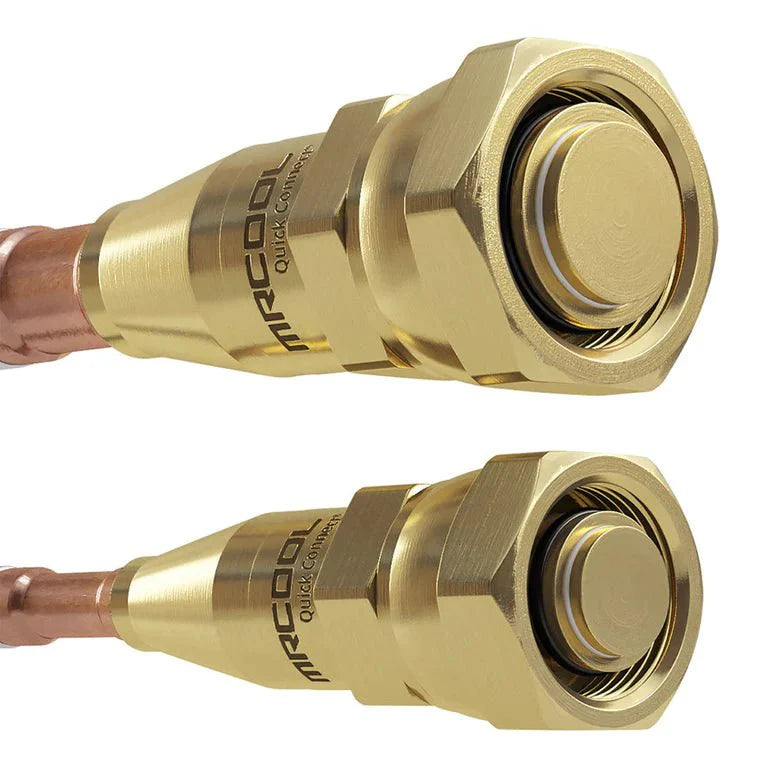

| LONG DESCRIPTION | The MrCool 4th Generation DIY 24K BTU, 20.5 SEER Ductless Heat Pump is an all in one system that seamlessly combines efficiency, durability, and simplicity. This system can offer a 20.5 SEER efficiency rating that has allowed it to achieve an Energy Star certification and can heat & cool an area up to 1,000 sq. ft. It also features durable construction and a corrosion-resistant Gold Fin condenser. All of this is contained within a Do-It-Yourself system that can be installed by a homeowner in a few hours using simple tools. This simplicity is achieved with the use of the patented MrCool Pre-Charged Quick-Connect Line Set included with the system. Not only is this system capable of delivering exceptional performance, it is also equipped with up to six operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. The system’s Follow Me Feature allows the system to adjust the room temperature based on wherever you’re standing with the hand-held remote control. This system also has the ability to be controlled with a smartphone by way of the Smart HVAC app. Backed by a limited lifetime compressor warranty, this system is sure to meet your comfort needs and peace of mind. |
| BULLET 1 | Up to 20.5 SEER |
| BULLET 2 | Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion |
| BULLET 3 | Variable-speed DC inverter compressor technology cuts operating costs |
| BULLET 4 | R-410A environmentally friendly refrigerant |
| BULLET 5 | Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty |
| SEER | 20.5 |
| EER | 12.5 |
| COP 47 | 3.15 |
| HSPF | hspf4/hspf5 : 10.5/9 |
| CFM | 605.88/505.88/364.71 |
| TONNAGE | TONNAGE |
| COOLING CAPACITY | 23000BTU |
| HEATING CAPACITY | 25000 BTU |
| VOLTAGE | 208-230 V |
| PHASE | 1 |
| CYCLE | 60 Hz |
| MAX FUSE BREAKER | 35 A |
| MIN CIRCUIT AMPACITY | 22 A |
| COLOR | White |
| COLOR FAMILY | White |
| RATED LOAD | 0.45 A |
| MAX COVERAGE AREA | Up to 1000 sqft |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-410A |
| REFRIGERANT VOLUME | 81.13 oz |
| DECIBEL RATING | 48.5/43.5/33 |
| DECIBEL RATING LOW | 33 dBA |
| DECIBEL RATING HIGH | 48.5 dBA |
| OSCILLATION | 4-W |
| INVERTER | Yes |
| MIN AMBIENT COOL | -13F - 122F |
| MIN AMBIENT HEAT | -13F - 75F |
| LINE SET LENGTH | 25ft |
| MAX LINESET LENGTH | 98.42 ft |
| LIQUID LINE SIZE | 3/8 in |
| SUCTION LINE SIZE | 5/8 in |
| COMPRESSOR MOTOR TYPE | Twin-Rotary |
| CONDENSER FAN MOTOR RPM | 850/750/700 |
| BLOWER MOTOR RPM | 1200/1000/700 |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| UL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Limited Lifetime Compressor |
| BASE WARRANTY | 5-year Parts/7-year Compressor |
| BASE PARTS WARRANTY | 5-year Parts |
| REGISTERED COMPRESSOR WARRANTY | Limited Lifetime Compressor |
| BASE COMPRESSOR WARRANTY | 7-year Compressor |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| RESTRICTED STATES | GU;PR;VI |
| CONDENSER DEPTH | 16.14 in |
| CONDENSER HEIGHT | 31.89 in |
| CONDENSER WIDTH | 37.24 in |
| CONDENSER WEIGHT | 125.22 lbs |

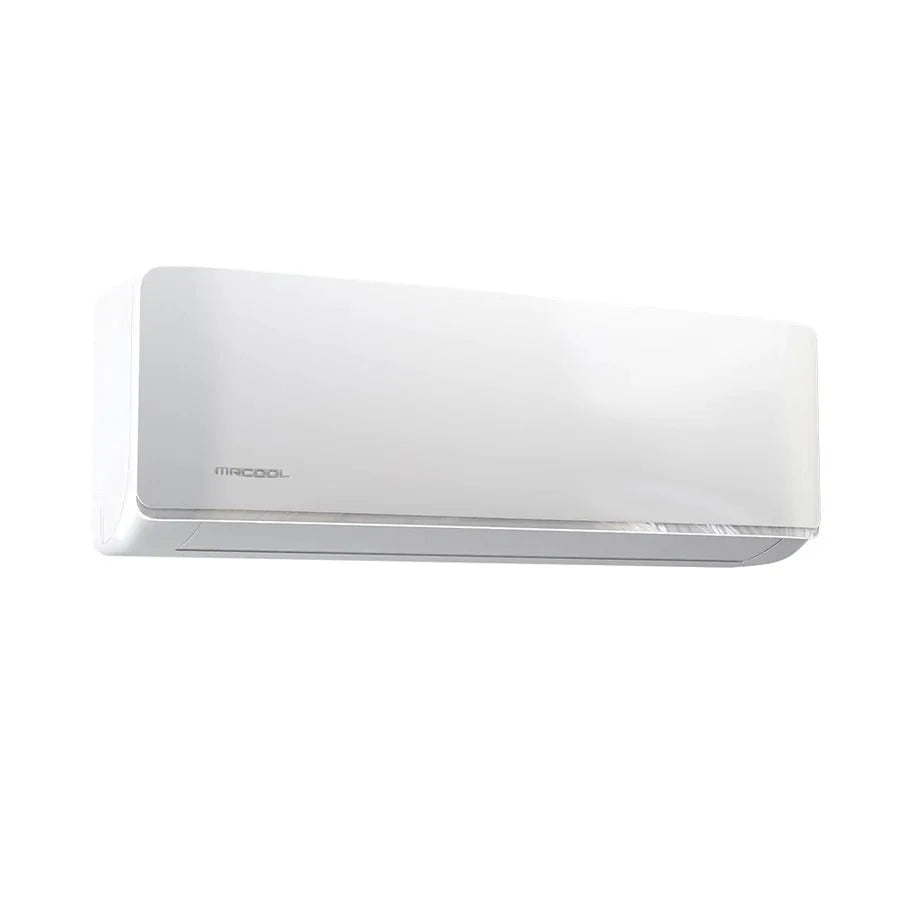

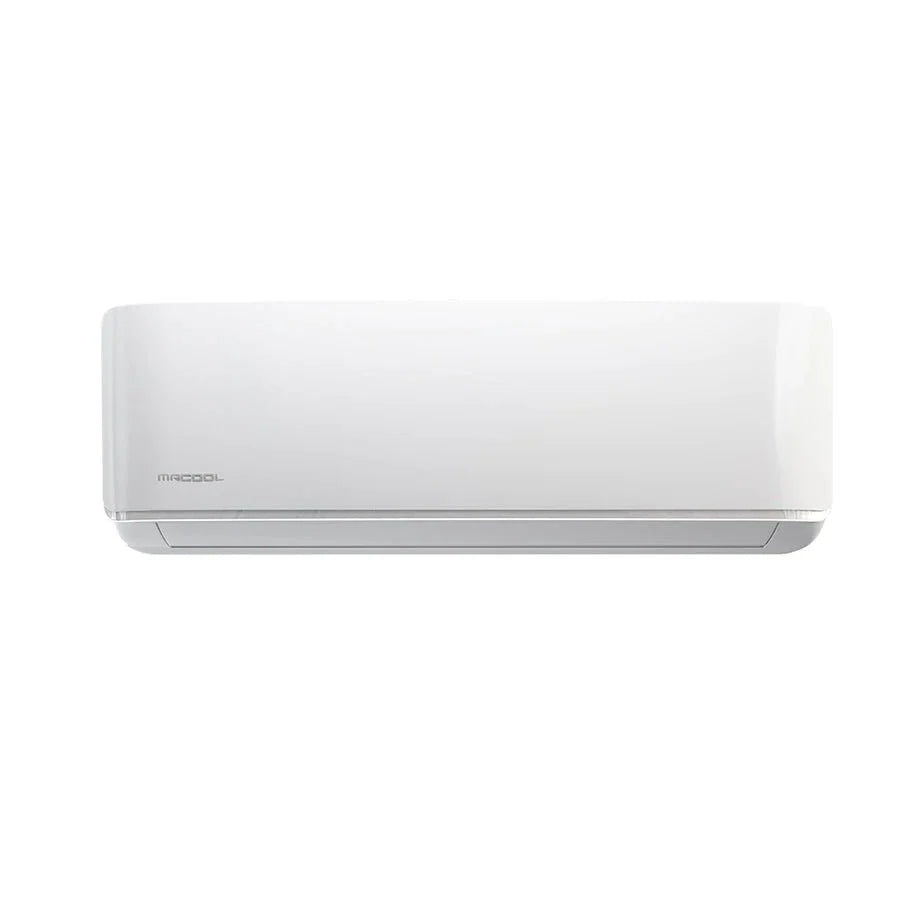

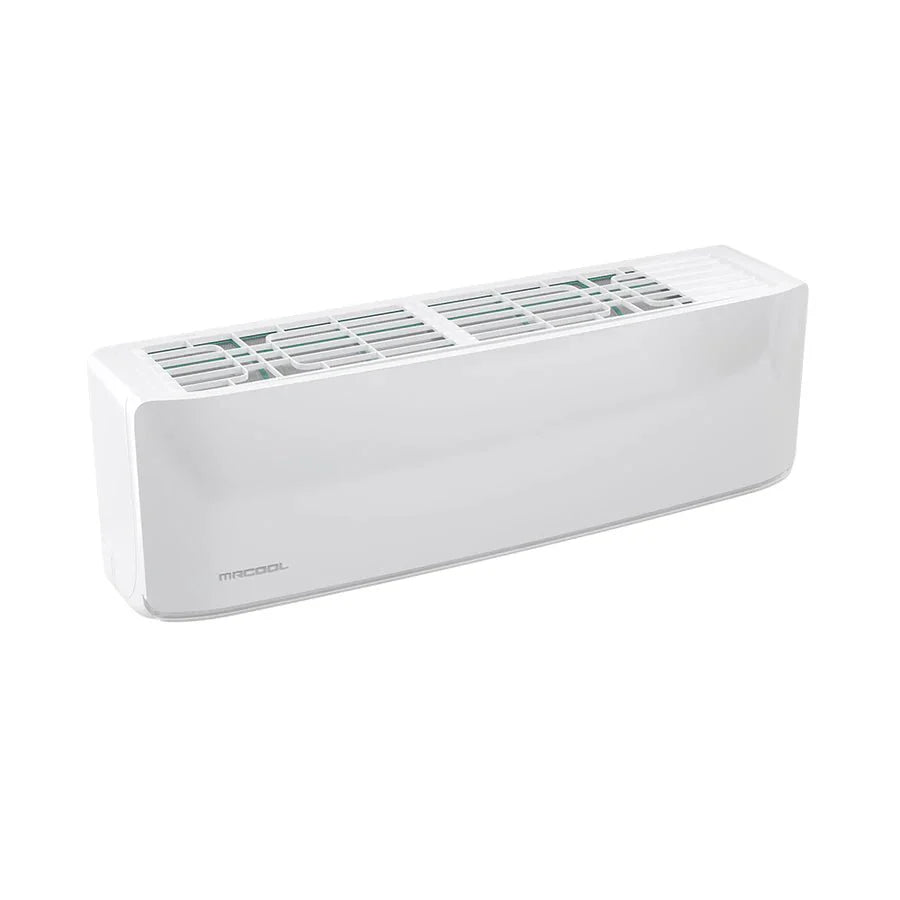

| AIR HANDLER DEPTH | 8.90 in |
| AIR HANDLER HEIGHT | 13.19 in |
| AIR HANDLER WIDTH | 42.52 in |
| AIR HANDLER WEIGHT | 35.27 lbs |
