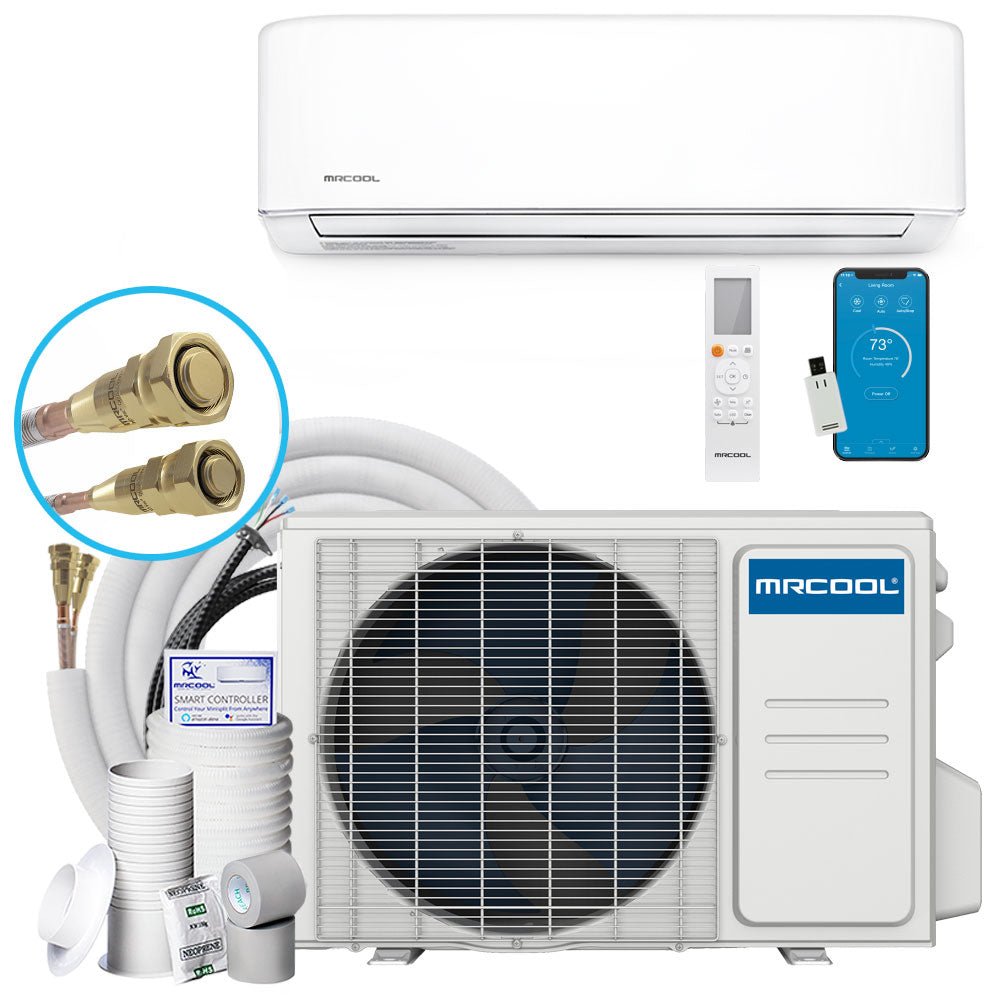

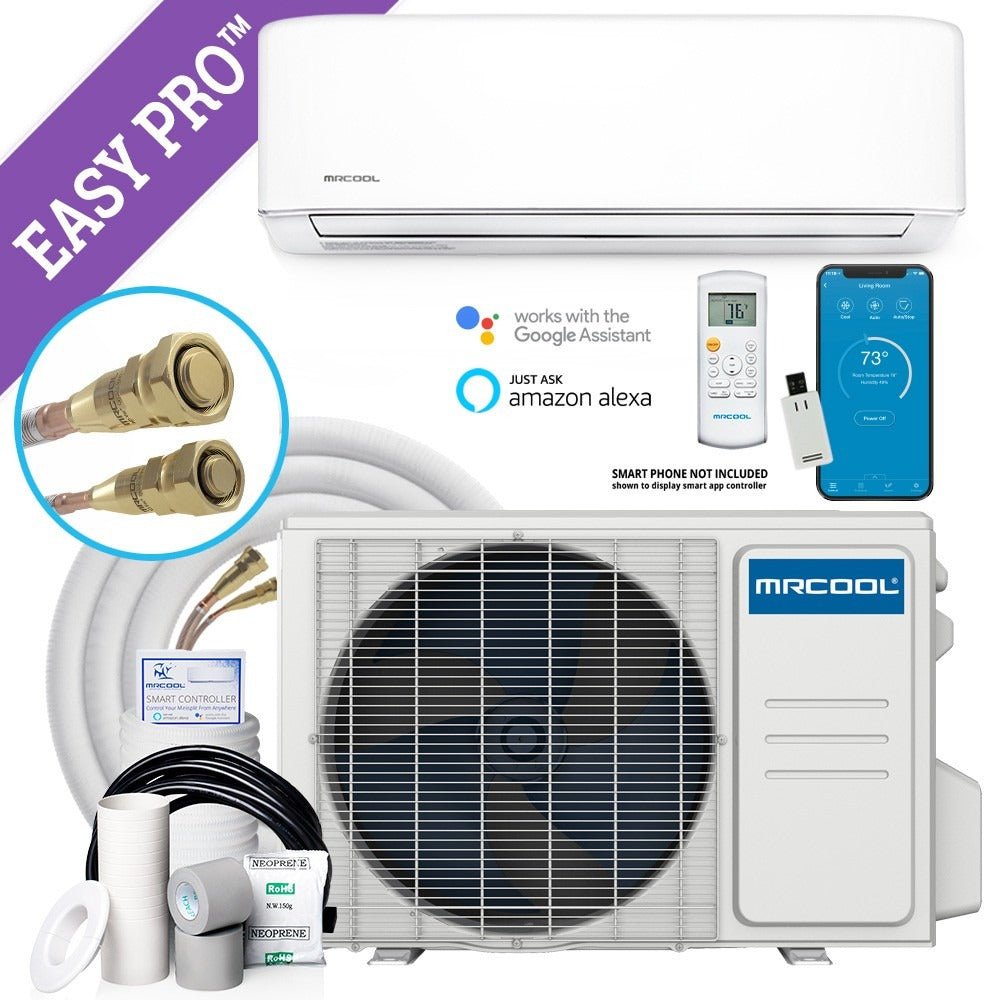

MRCOOL DIY Easy Pro 18K 18,000 BTU 18.5 SEER Ductless Mini Split Air Conditioner and Heat Pump - 230V
MRCOOL DIY Easy Pro 18K 18,000 BTU 18.5 SEER Ductless Mini Split Air Conditioner and Heat Pump - 230V
Couldn't load pickup availability
The MRCOOL Easy Pro® DIY 18K BTU Ductless Mini-Split Heat Pump System is easy to install as well. With the capability of effectively heating and cooling a space of 750 square feet, this easy-to-install unit also includes the convenient 16 foot pre-charged line set, with Fast Connection® fittings.
The features are numerous with this system such as the Follow Me® feature can make sure that the temperature you want is designated to wherever you are in the space, as well as the anti-mildew feature that provides the cleanest air for you and your family to breathe. Maintaining the system is as easy as the installation, as the air filters only require rinsing and replacing, and the LED display provides useful troubleshooting codes for you to solve any issue that arises on your own.
This system can be operated with your Apple or Android device via the SmartHVAC app, the included remote control, or your Amazon Alexa or Google Assistant. Feel confident in your purchase with the 1-year compressor warranty and 2-year parts warranty. This is an easy-to-install system that can provide exceptional heating and cooling for your home or office.
| MODEL | EZPRO-18-HP-23016 |
| GTIN | 810035935211 |
| UPC | 810035935211 |
| UNIT TYPE | Mini-Split |
| SHORT DESCRIPTION | MRCOOL® DIY Easy Pro® 18k BTU Ductless Mini-Split Heat Pump System |
| LONG DESCRIPTION | Not only is it reliable, but the MRCOOL® Easy Pro® 18k BTU Ductless Mini-Split Heat Pump System is easy to install as well. With the capability of effectively heating and cooling a space of 750 square feet, this easy-to-install unit also includes the convenient 16 foot pre-charged line set, with Fast Connection® fittings. The features are numerous with this system such as the Follow Me® feature can make sure that the temperature you want is designated to wherever you are in the space, as well as the anti-mildew feature that provides the cleanest air for you and your family to breathe. Maintaining the system is as easy as the installation, as the air filters only require rinsing and replacing, and the LED display provides useful troubleshooting codes for you to solve any issue that arises on your own. This system can be operated with your Apple or Android device via the SmartHVAC app, the included remote control, or your Amazon Alexa or Google Assistant. Feel confident in your purchase with the 1-year compressor warranty and 2-year parts warranty. This is an easy-to-install system that can provide exceptional heating and cooling for your home or office. |
| BULLET 1 | Up to 18.5 SEER |
| BULLET 2 | Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion |
| BULLET 3 | Energy Efficient DC Inverter |
| BULLET 4 | Low ambient cooling: cooling down to 5F exterior temperatures, the ideal system for computer server rooms, greenhouses, and any other applications that require cooling all year |
| BULLET 5 | Includes features such as timer mode, refrigerant leakage detection, and more |
| BULLET 6 | Systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant. |
| BULLET 7 | Quiet Running |
| SEER | 18.5 |
| SEER2 | 19.3 |
| EER | 9.8 |
| EER2 | 9.8 |
| COP 47 | 3.1 |
| HSPF | hspf4/hspf5 : 9.7/8 |
| HSPF2 | hspf2-4/hspf2-5 : 8.6/6.7 |
| CFM | 382.35/300.00/264.71 |
| COOLING CAPACITY | 17000 BTU |
| HEATING CAPACITY | 18000 BTU |
| VOLTAGE | 208-230 V |
| PHASE | 1 |
| CYCLE | 60 Hz |
| MAX FUSE BREAKER | 25 A |
| MIN CIRCUIT AMPACITY | 15.5 A |
| RATED LOAD | 10 A |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-410A |
| REFRIGERANT VOLUME | 49.03 oz |
| DECIBEL RATING | 39 dBA |
| DECIBEL RATING LOW | 23.5 dBA |
| DECIBEL RATING HIGH | 44.5 dBA |
| MIN AMBIENT COOL | 5F - 122F |
| MIN AMBIENT HEAT | 5F - 75.2F |
| MAX LINESET LENGTH | 98ft |
| LIQUID LINE SIZE | 1/4in |
| SUCTION LINE SIZE | 1/2in |
| COMPRESSOR MOTOR TYPE | Rotary |
| CONDENSER FAN MOTOR RPM | 1200/700 |
| BLOWER MOTOR SPEEDS | 3 |
| BLOWER MOTOR RPM | 1200/1000/900 |
| FILTER TYPE | Washable |
| FAN ONLY OPTION | Yes |
| SLEEP MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | yes |
| APP COMPATIBILITY | yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| ENERGY STAR CERTIFIED | yes |
| AHRI CERTIFIED | yes |
| REGISTERED WARRANTY | 2-year Parts/1-year Compressor |
| REGISTERED PARTS WARRANTY | 2 years |
| REGISTERED COMPRESSOR WARRANTY | 1 year |
| PROPOSITION 65 WARNING | Yes |
| CONDENSER DEPTH | 11.93 in |
| CONDENSER HEIGHT | 21.85 in |
| CONDENSER WIDTH | 30.12 in |
| CONDENSER WEIGHT | 63.49 lbs |
| AIR HANDLER DEPTH | 8.98 in |
| AIR HANDLER HEIGHT | 12.64 in |
| AIR HANDLER WIDTH | 38.23 in |
| AIR HANDLER WEIGHT | 29.98 lbs |
